Contacting Tip Fiber-Optic Probes
Our Fiber-optic Probes with Contacting Tips are designed to achieve a more refined intensity measurement. The intensity response of a Sensor is influenced by several factors, including brightness and size of the LED under test, the aperture of the Fiber-optic Probe that is being used to test the LED, and the distance between the LED and the Fiber-optic Probe tip.
Our Fiber-optic Probes with Contacting Tips feature an insulated plastic ‘shrouded’ tip, which makes contact with the LED under test – protecting the optical fiber and the LED, yet ensuring a repeatable consistent distance between the LED and the Fiber-optic Probe. The stainless-steel casings of the Fiber-optic Probe are spring-loaded and retract, enabling the Fiber-optic Probe’s tip to remain in contact with the LED within the fixture.
The Fiber-optic Probes with Contacting Tips are available in two types:

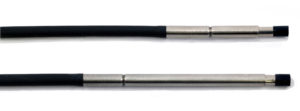

Flexible Fiber-optic Probes with Contacting Tips
Flexible Fiber-optic Probes with Contacting Tips are available with regular, superflex or rugged cabling.
Rigid Fiber-optic Probes with Contacting Tips
Rigid Fiber-optic Probes with Contacting Tips are available in Straight or Right Angle models. Rigid models eliminate the need for sensor mounting clamps.
For dimension drawings and full part numbers, please see the Fiber-optic Probe Quick Guide.
For more information on these fiber-optic probes, please download our Universal LightProbe Catalog.
